Laser Welded Dimple Jacket Dimple Plate Jacket Pillow Plate Jacket for cooling and heating
Laser Welded Dimple Jackets Pillow Jackets Introduction
Chemequip Laser-Welded Dimple Jacket is a compact heat-transfer structure designed for heating, cooling, and temperature control of process vessels.The jacket is manufactured by laser welding two metal sheets at a defined pattern to create a series of internal flow channels. After welding, the jacket is formed by controlled inflation, creating a dimpled heat-transfer surface. Heating or cooling media flows through these channels and transfers heat through the jacket wall.
The dimpled channel structure promotes fluid turbulence and provides a large effective heat-transfer area, allowing efficient and relatively uniform temperature control. Depending on the vessel design and operating conditions, the jacket can be customized in terms of material, dimensions, welding pattern, channel configuration, and connection arrangement.

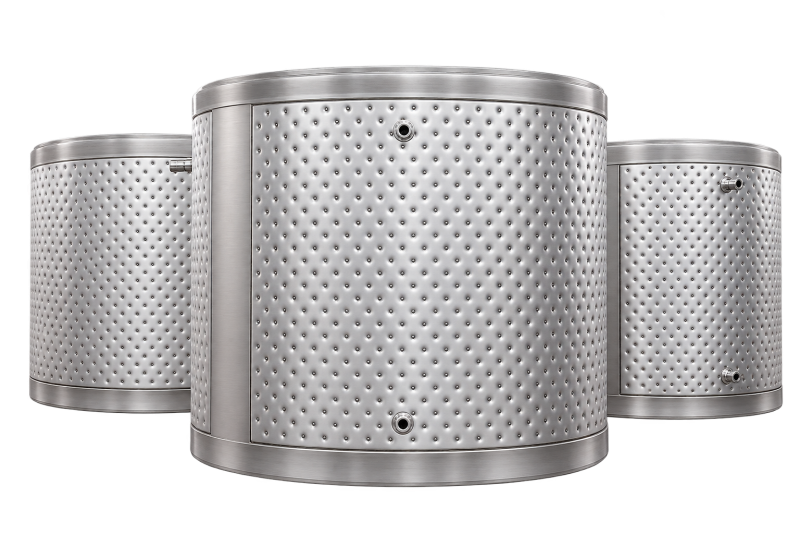

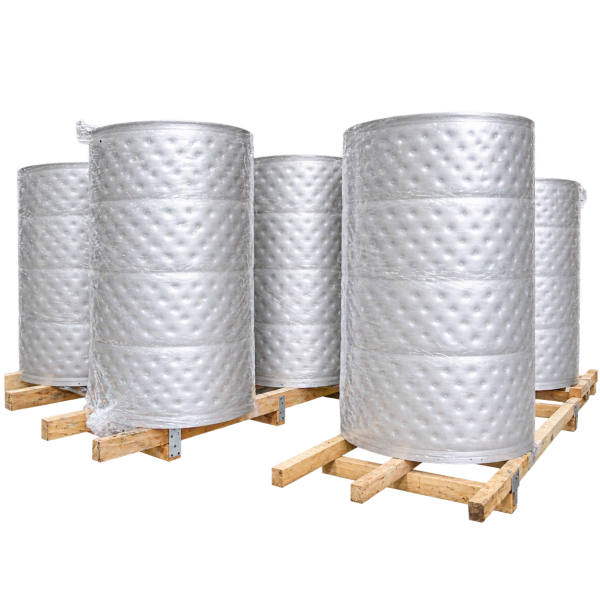

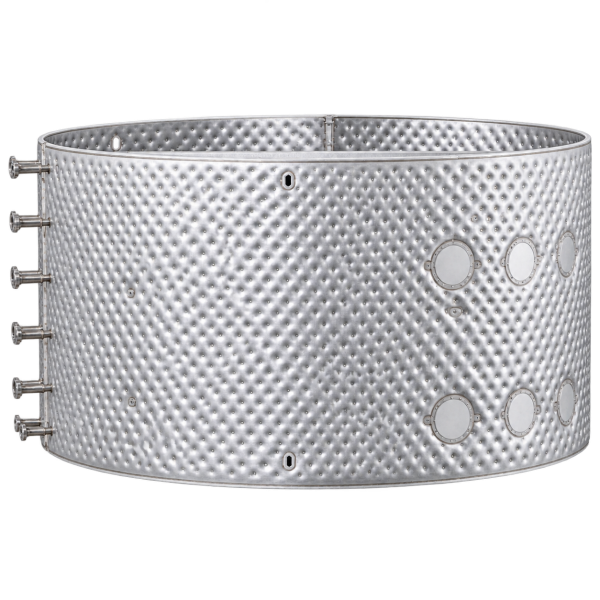

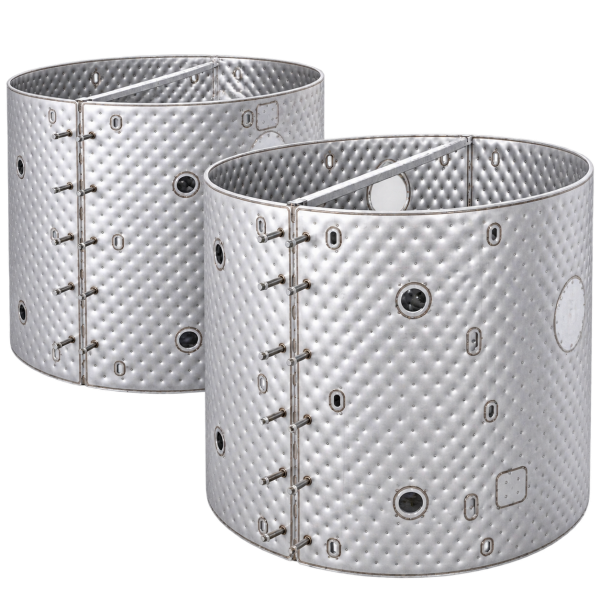

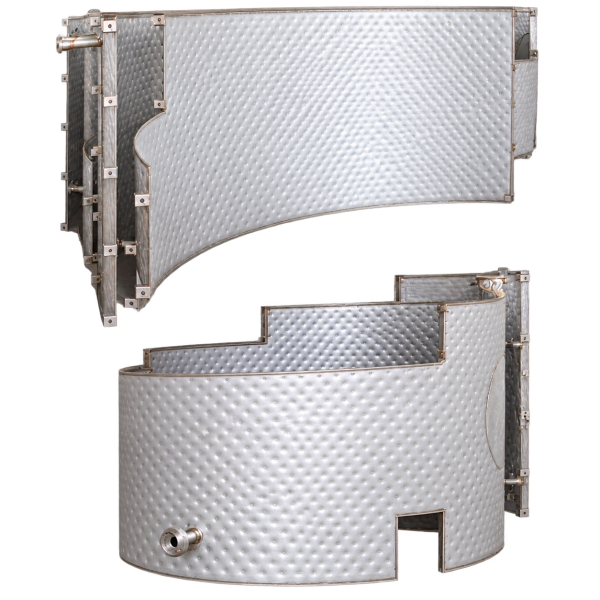

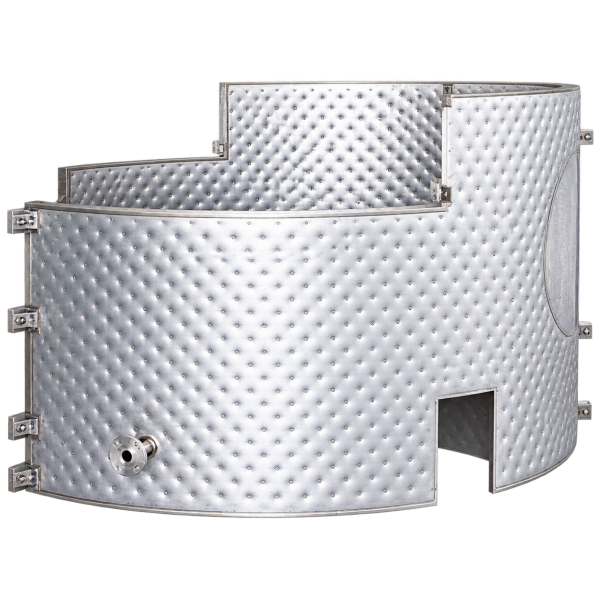

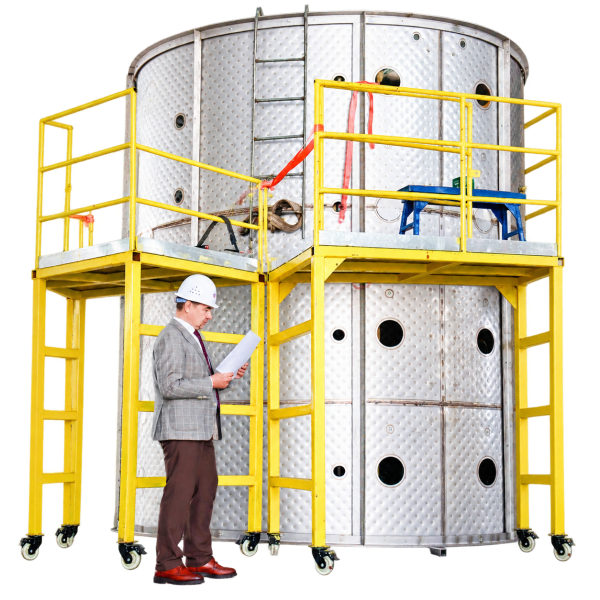

Laser Welded Dimple Jacket Pillow Plate Photos
Custom-made Your Dimple Jackets for Specical Heating or Cooling
The Laser-Welded Dimple Jacket can be customized according to vessel geometry, operating pressure, temperature, heat-transfer medium, required heat-transfer area, material, and flow requirements.The jacket can be supplied as flat panels, rolled cylindrical sections, formed sections, or customized components for integration into new or existing process equipment.Laser welding technology enables precise control of the welding pattern and flow-channel geometry, allowing the heat-transfer surface to be optimized for different industrial applications.
Laser Welded Dimple Jackets Pillow Jackets Applications
- Chemical Processing
- Pharmaceutical and Bioprocessing
- Food & Beverage & Fermentation
- Polymer and Resin Processing
- Wax and Oil Processing
- Crystallization
- Optical Fibers and Semiconductors
- General Process Vessel Temperature Control
- Heat Sink
