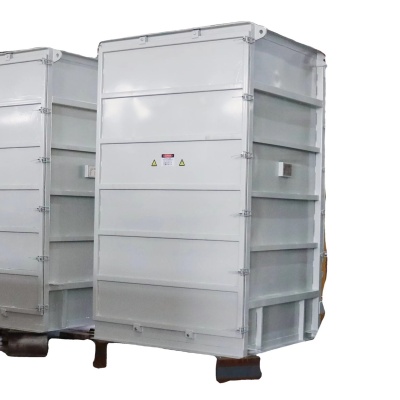

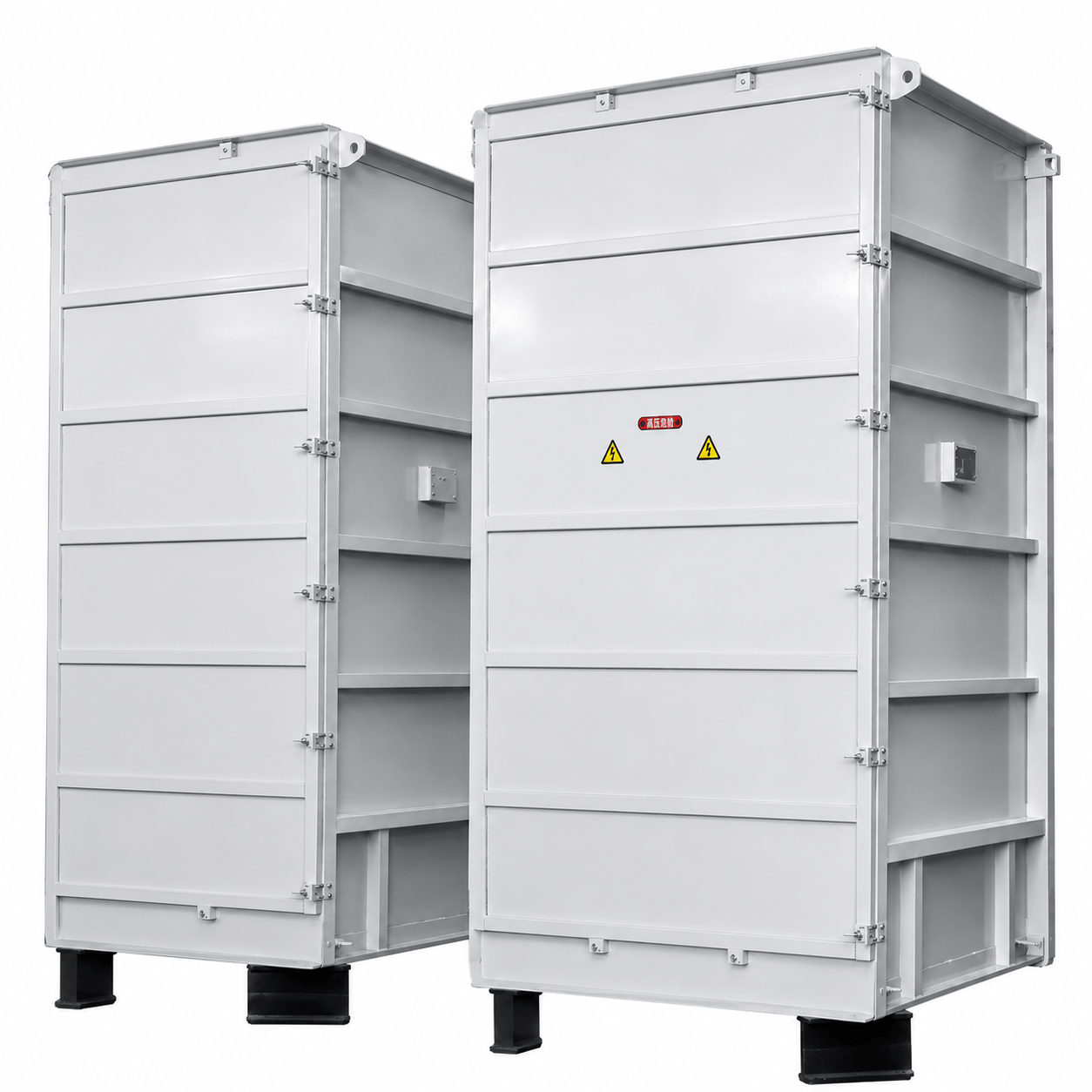

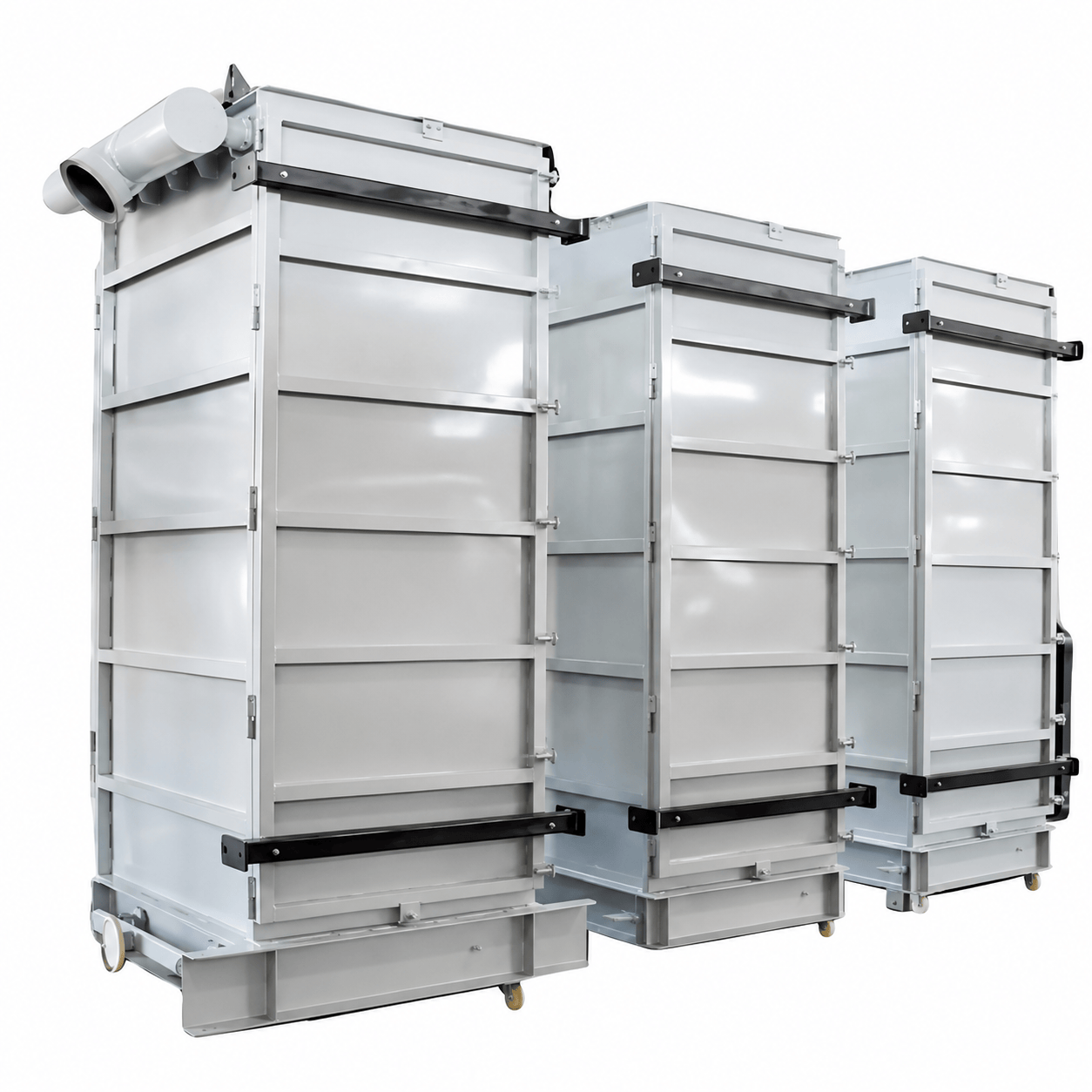

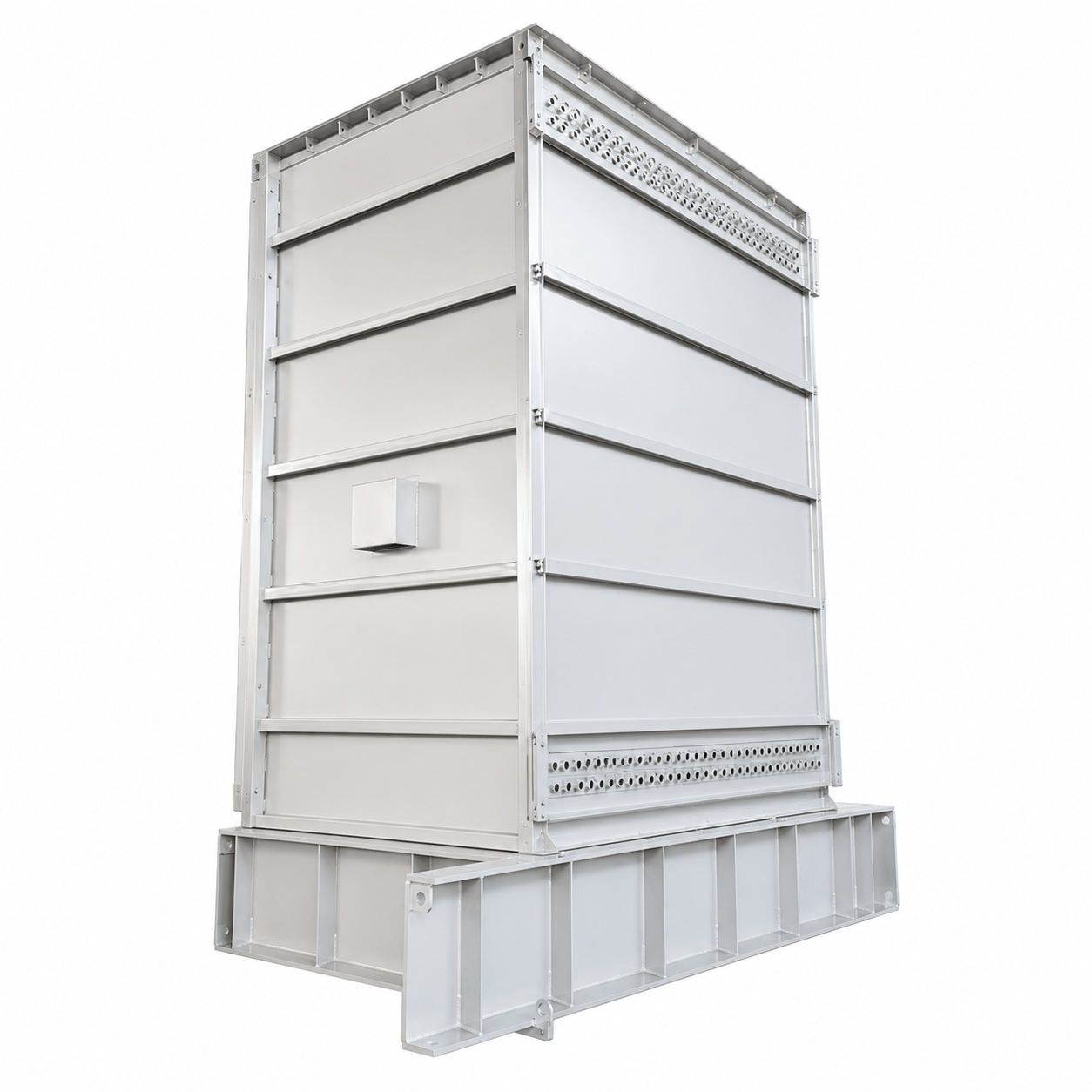

The Main Components of Bulk Solid Heat Exchangers

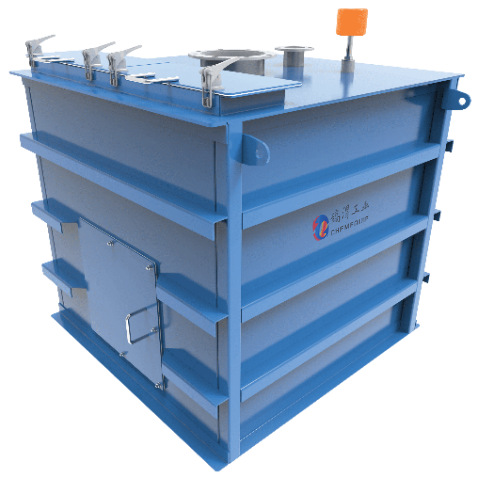

Inlet Hopper

• Inspection Hatch
• Interfaces for product, Vent and Instrument

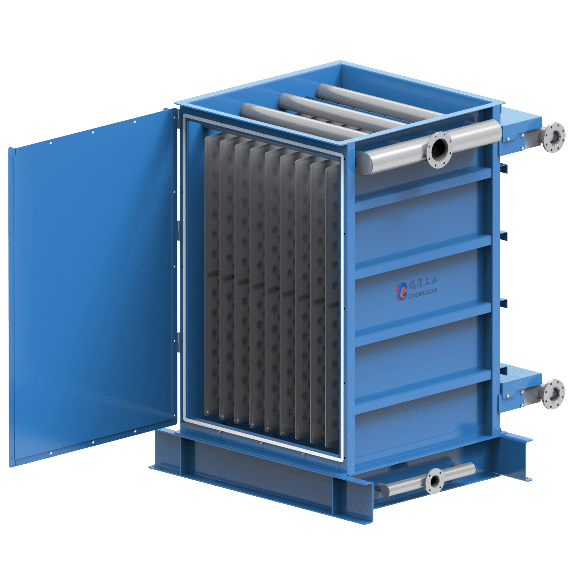

Plate Banks and Casing

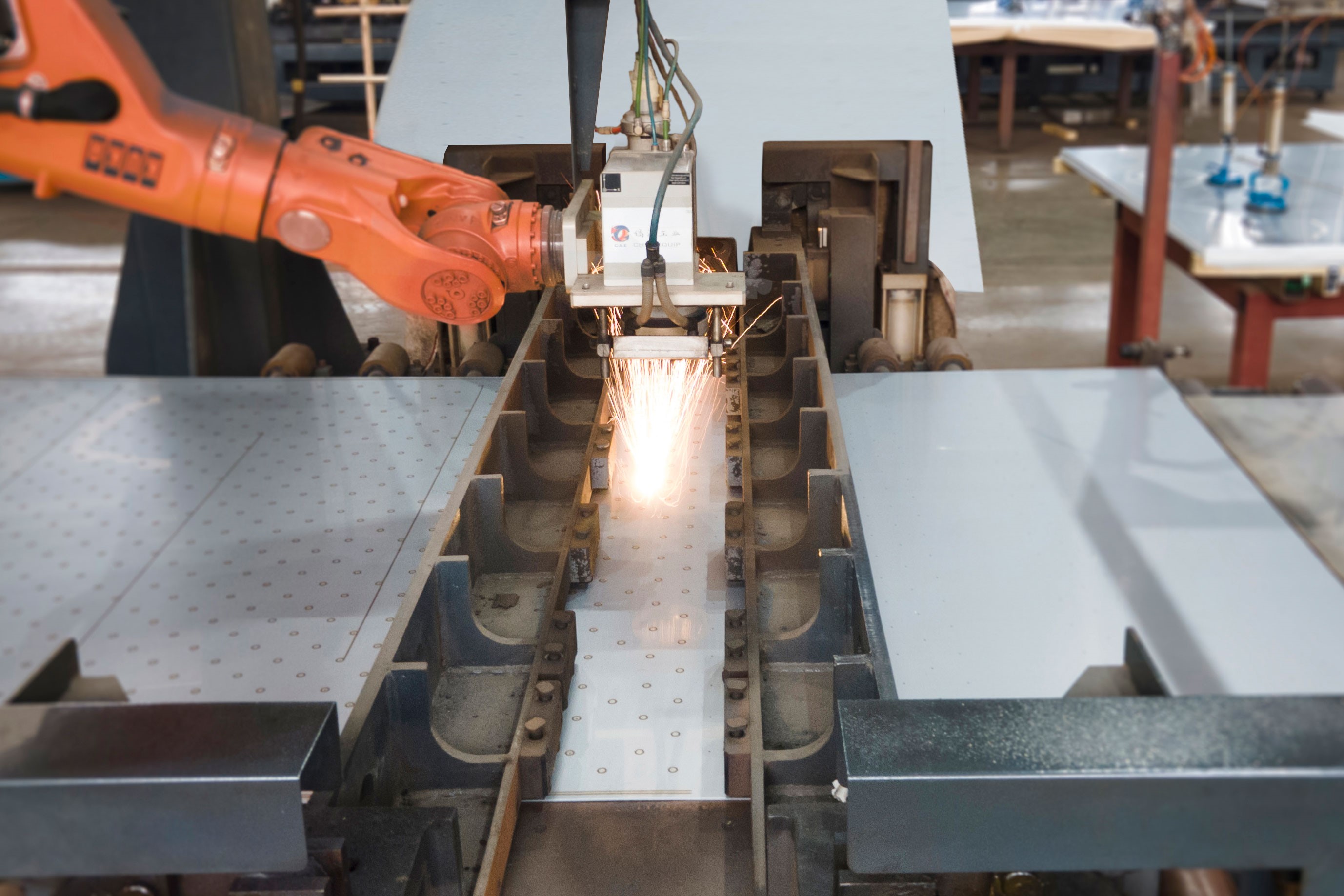

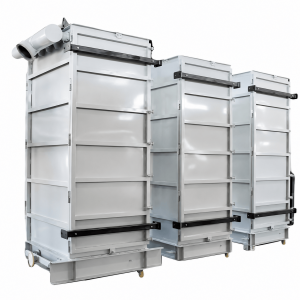

• Laser Welded Pillow Plates
• Flexible Hoses
• Manifold, Rear Door/Back door
• Air Injection System

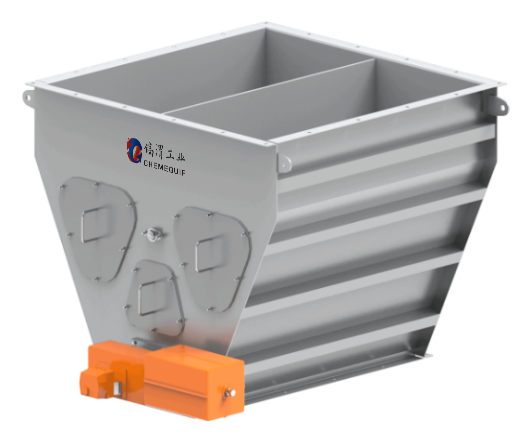

Mass Flow Discharge Feeder

• Gate Feeder
• Pneumatic Actuator
• Pneumatic Positioner
• Pneumatic Vibrator

How It Works?

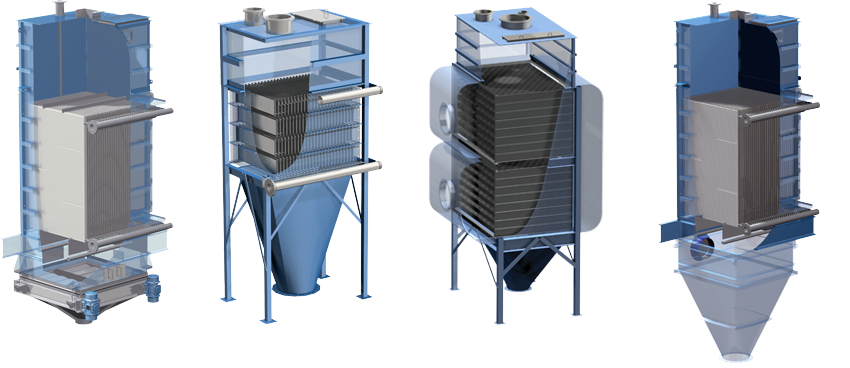

• Bulk solids pass slowly downward between a series of vertical hollow platecoil heat exchangers.
• Cooling water flows through the platecoils to cool the material by conduction.
• The mass flow discharge feeder creates uniform product velocity through the cooler and regulates the product flow rate.
