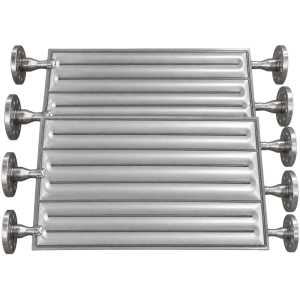

Serpentine Laser Welded Plates Pillow Plates Dimple Plates Platecoil Heat Exchangers Plates

Short Description:

Custom-made Shape and Size
High Turbulence
High Heat Transfer Coefficient
Applicable for various materials and media
High Production Capacity and Short Lead Time

Product Detail

Product Tags

Platecoil Laser Welded Heat Exchangers Pillow Plates Dimple Plates Introduction

Chemequip platecoil heat transfer plates, also named Laser welded Pillow Plates, Laser-Welded Dimple Plates, are a high-efficiency laser-welded heat exchangers plates. The platecoil laser welded pillow plates/dimple plates adopt pillow-shaped hollow cavity structure and are widely used for industrial liquid heating, cooling, semiconductor temperature control, heat sinks and chips cooling industries. The platecoil laser welded pillow plates can be made for single side embossed or double side embossed according to different applications conditions.

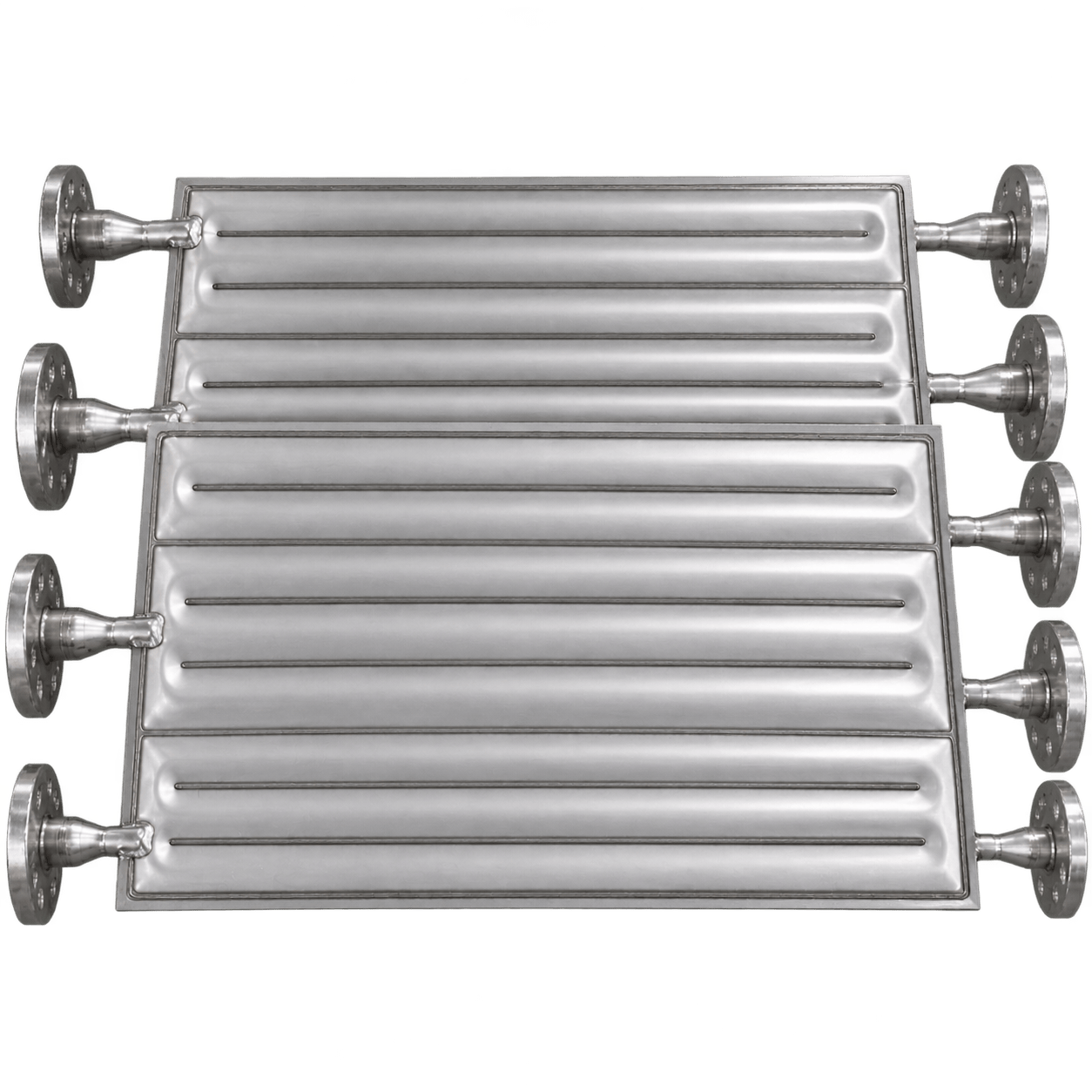

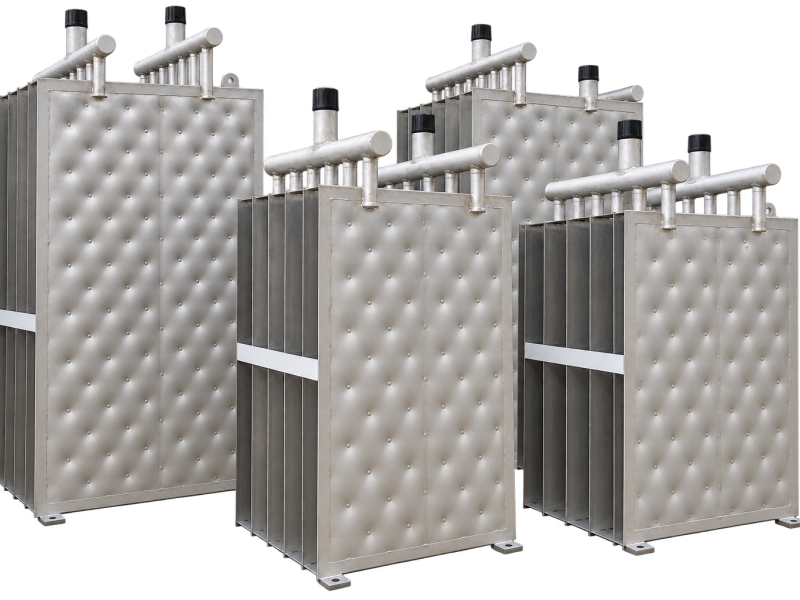

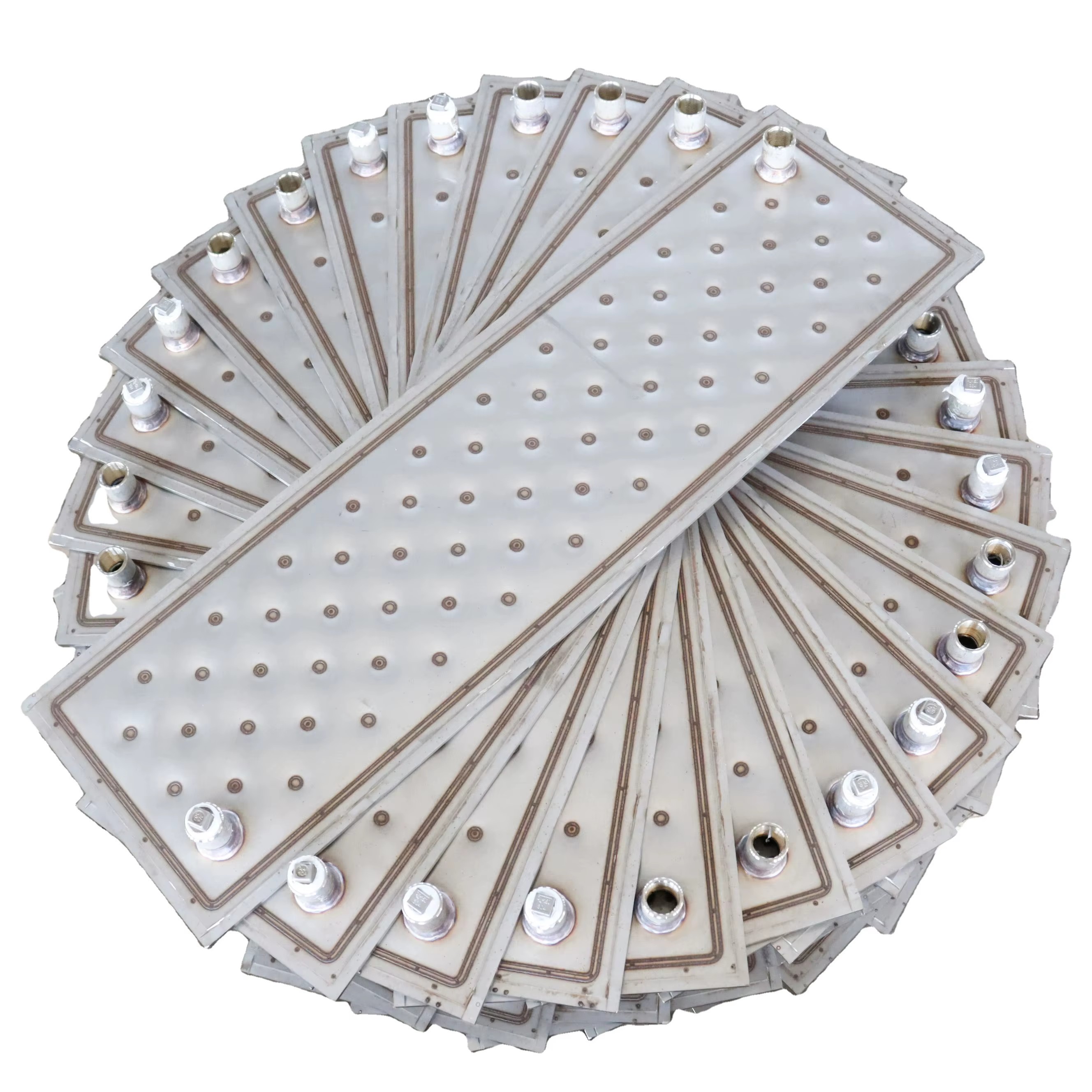

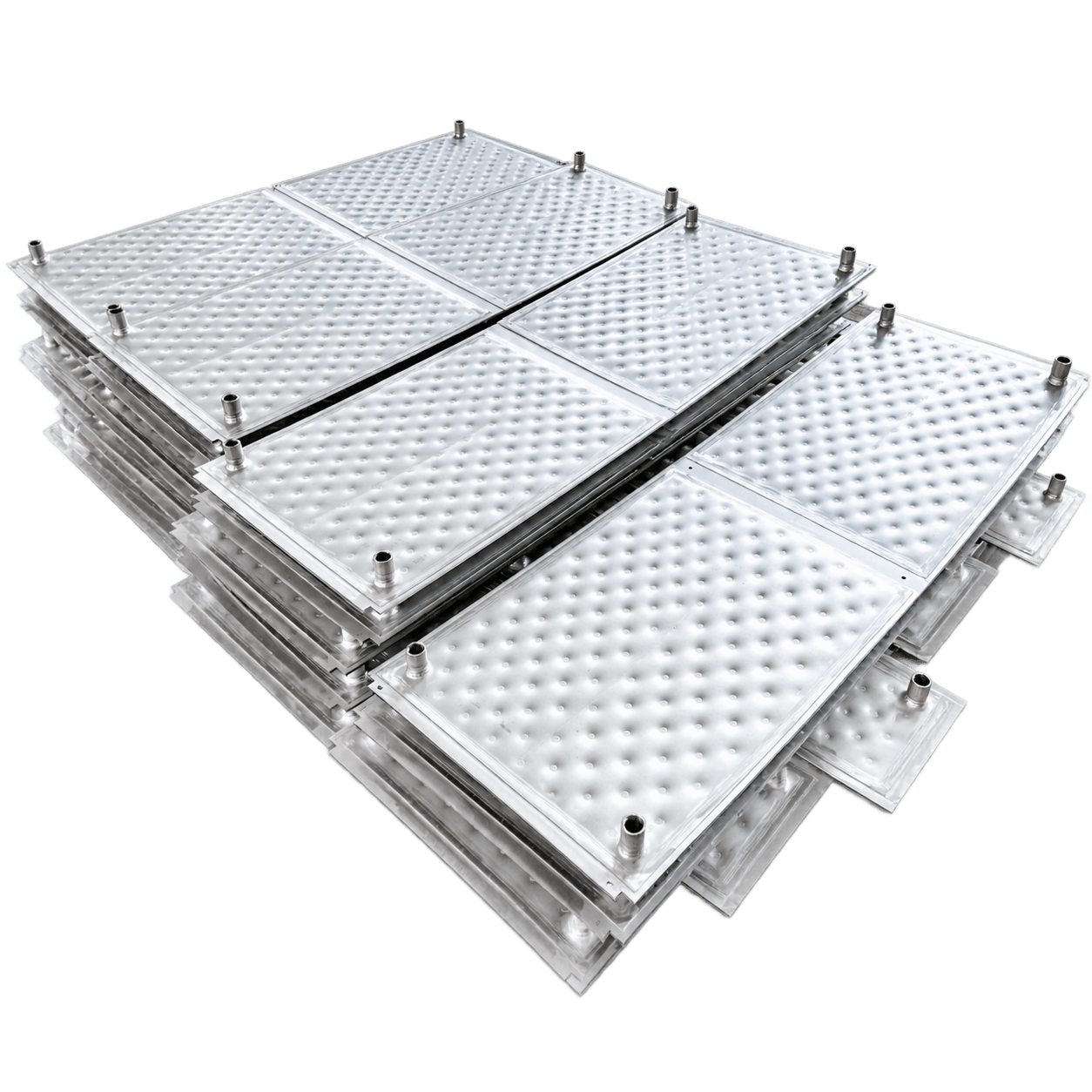

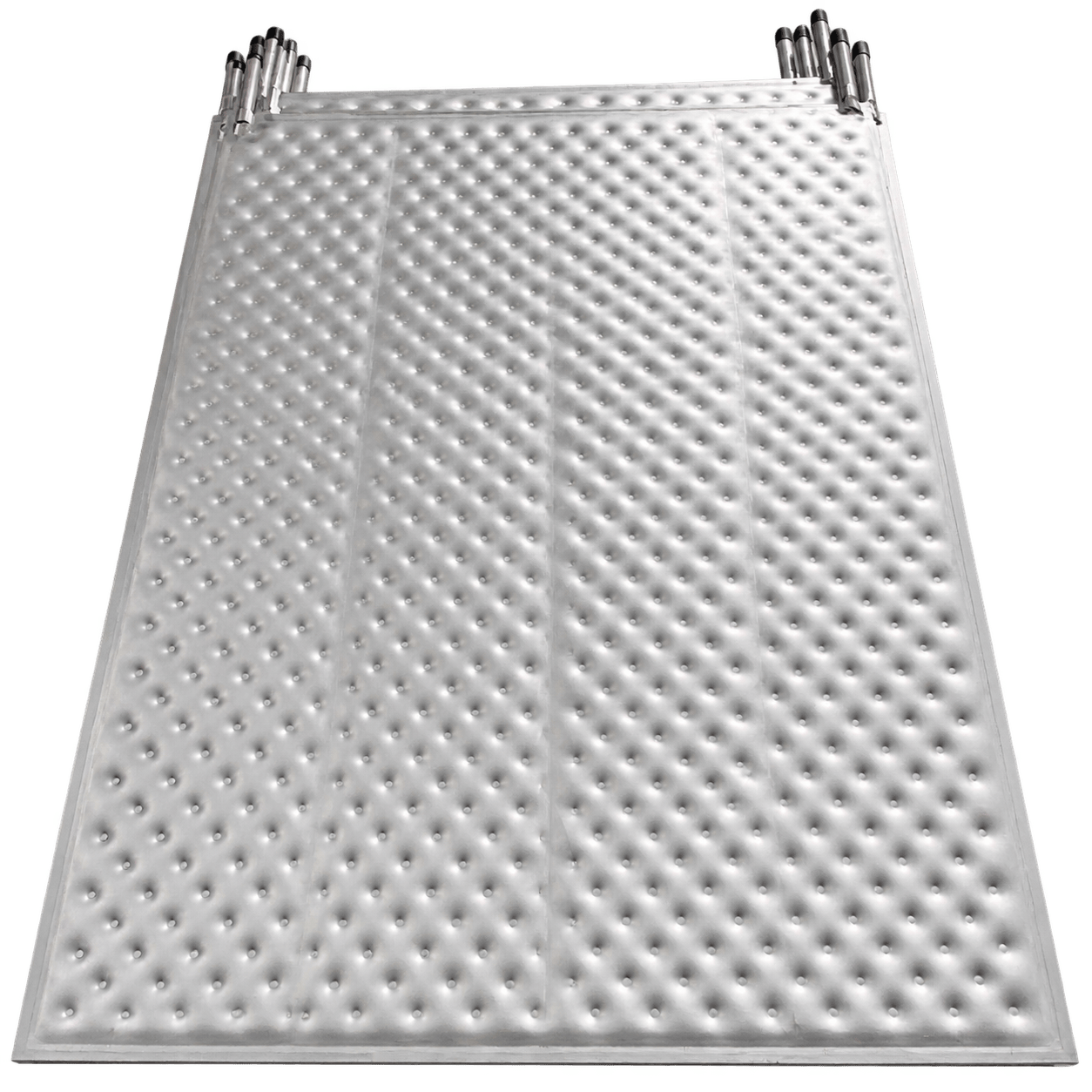

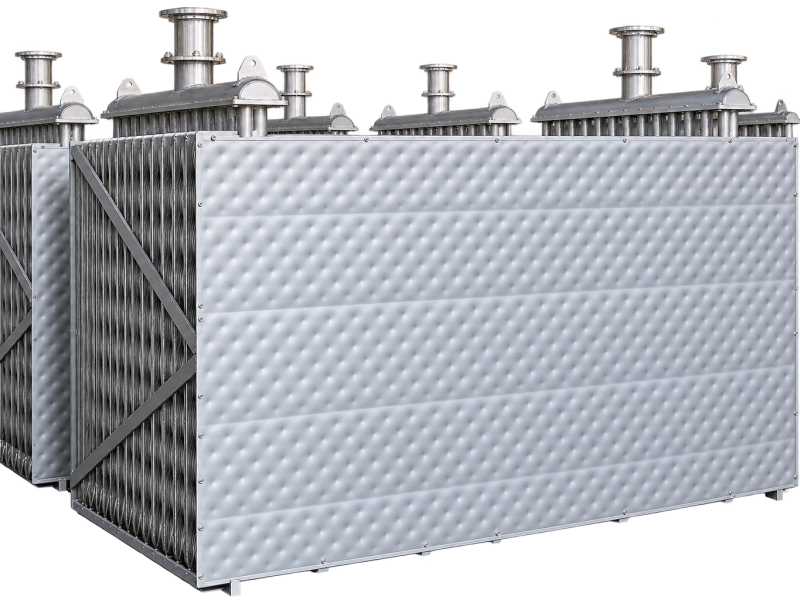

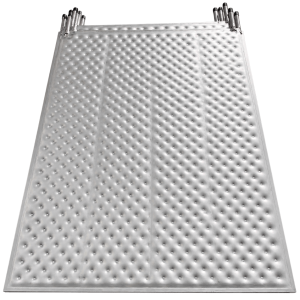

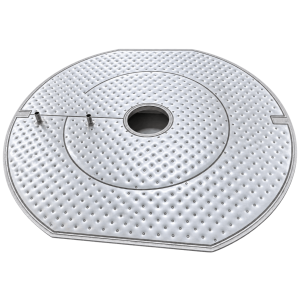

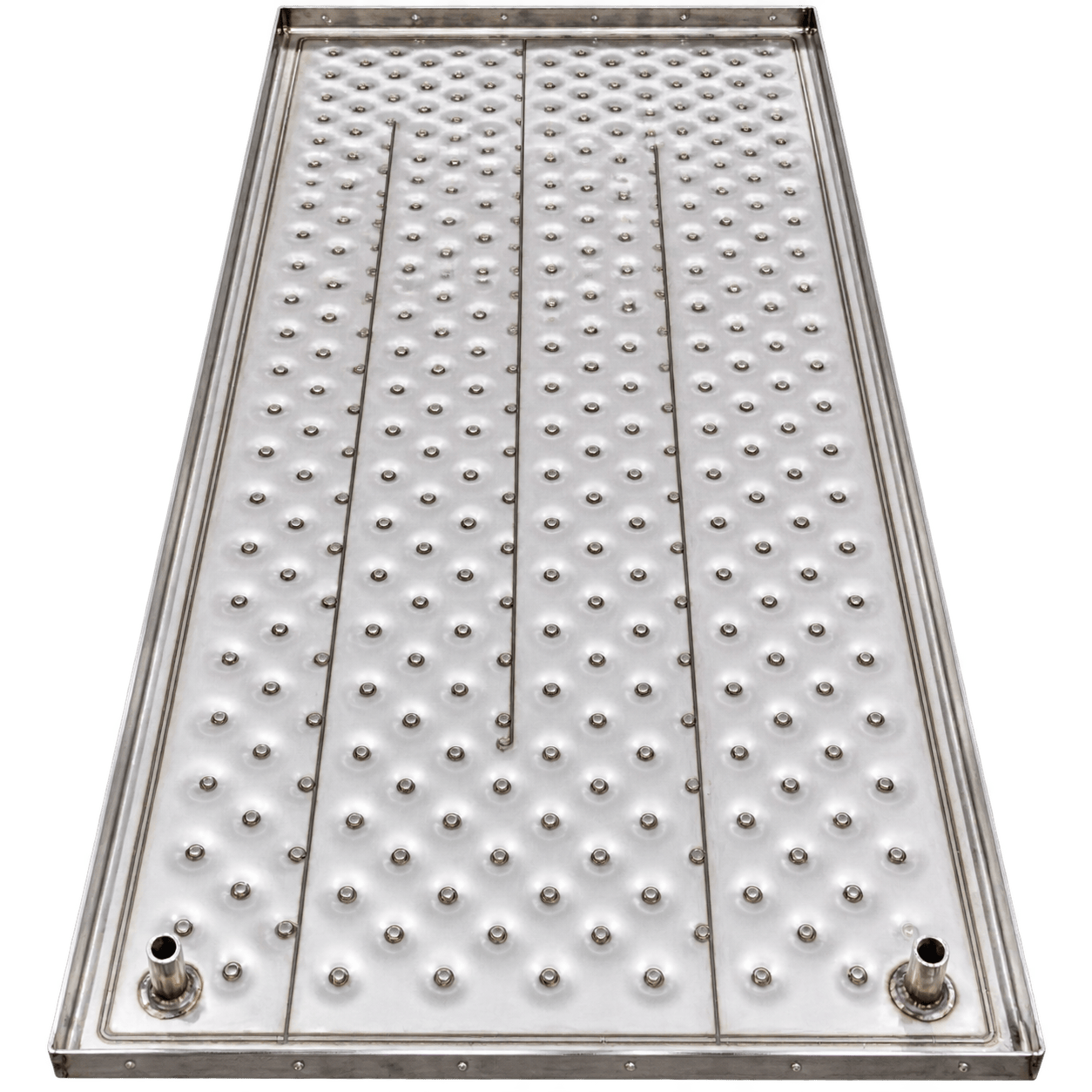

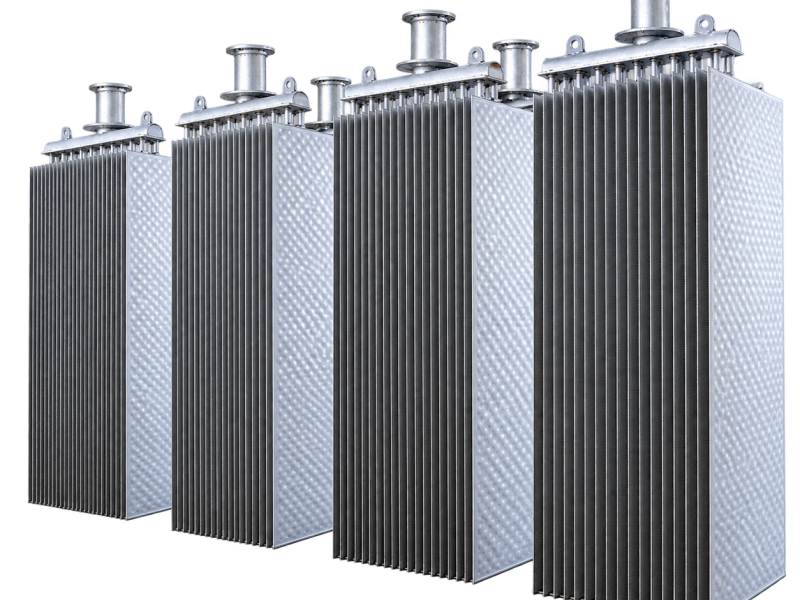

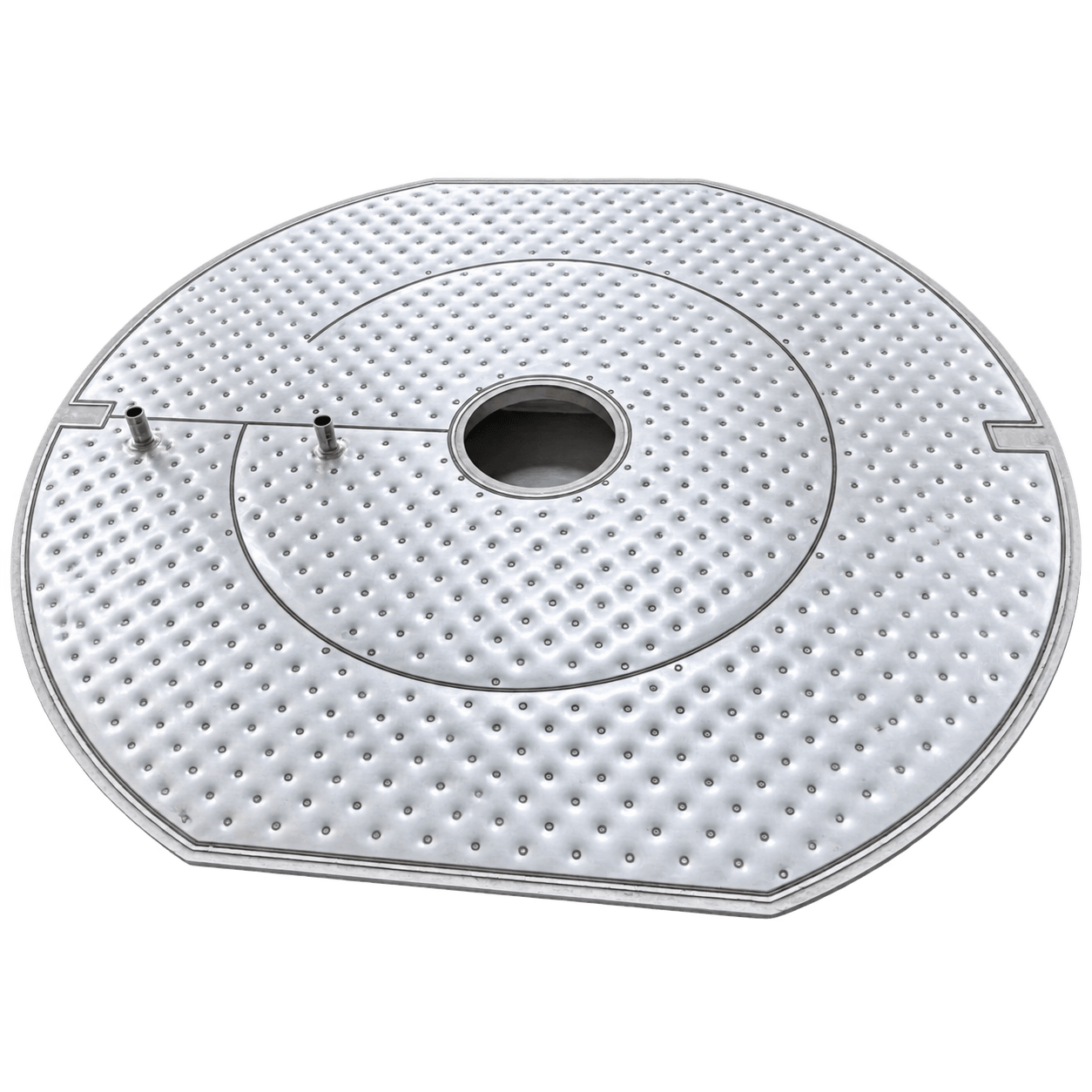

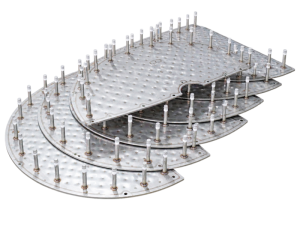

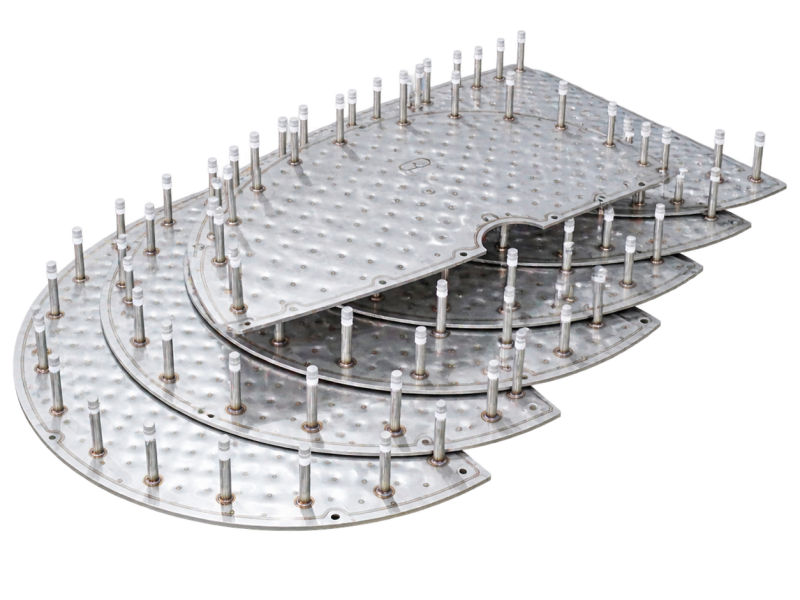

Platecoil Laser Welded Heat Exchangers Pillow Plates Dimple Plates Photos

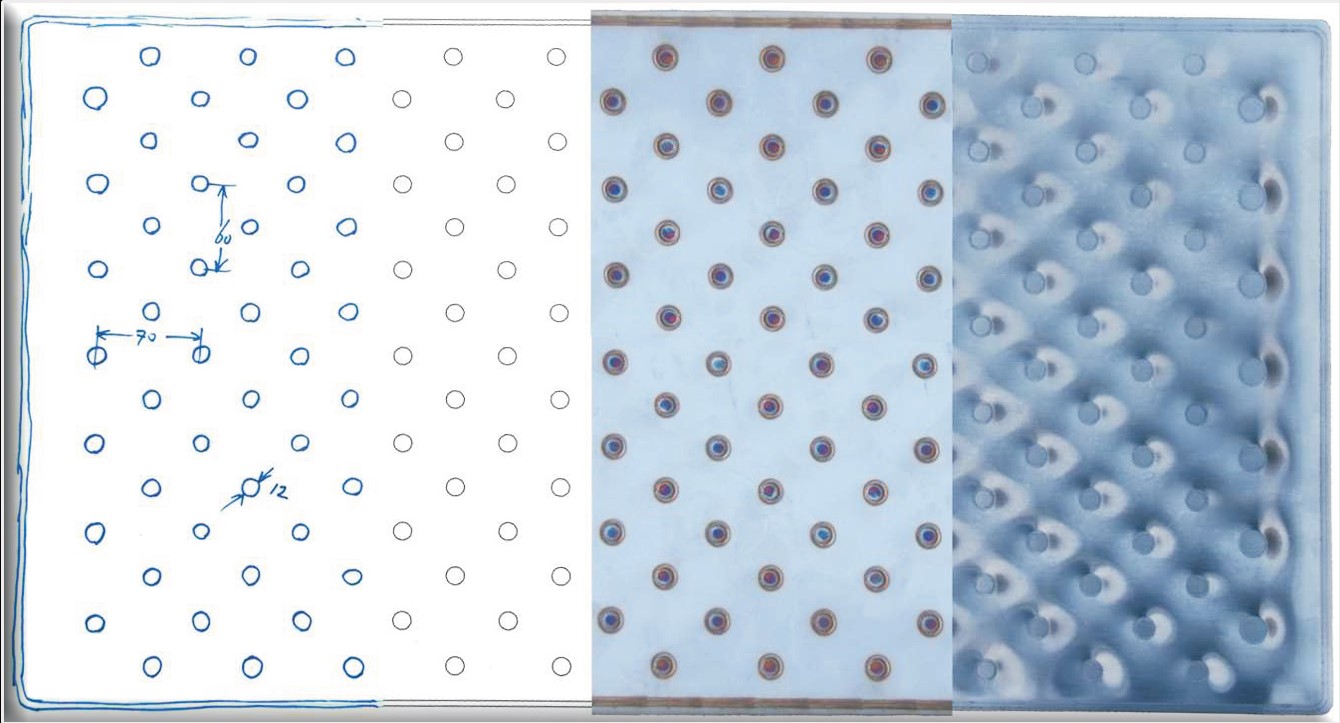

Platecoil Laser Welded Heat Exchanger Pillow Plates Dimple Plates Manufacturing Process

^{Chemequip is equipped with 10 sets of advanced intelligent laser welding machines production lines, we can provide the standard and custom-made pillow plate dimple plates heat exchangers plates according to different customer's demand in a short delivery cycle.}

^{Material Applicable : SUS304 , SUS316, SMO254, Titanium, etc.}

^{Heat Transfer Media :  Cooled water, Hot water, Steam, Heat transfer oil, Freon, Glycol, etc}

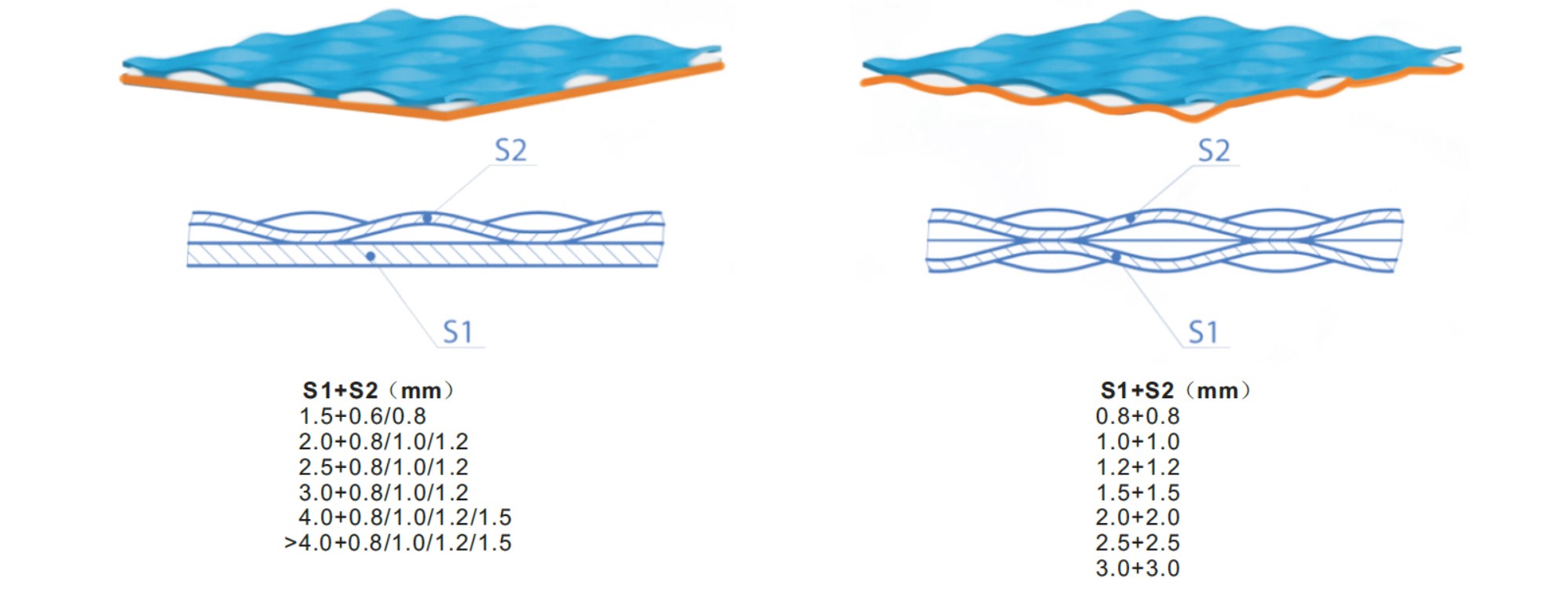

^{Thickness Applicable: 1.2mm+1.2mm, 1.5mm+1.5mm, 2mm+2mm, 1.2mm+2mm, etc.}

^{Surface Treatment : pickle passivation, electroplating polishing}

Platecoil Laser Welded Heat Exchanger Pillow Plates Dimple Plates Applications

^{Food & Beverage : Heating & cooling of milk, beer and chocolate, meat and fish fresh-keeping.}
^{Chemical & Petrochemical: Heating for crude oil and heavy fuel oil}
^{Energy & Waste Heat Recovery: Waste heat recovery, heat pump.}
^{Falling FIim Chiller : High efficient evaporative plates}
^{Chemical Reactors Towder : Embedded cooling plate, heating Plates}
^{Semiconductor Furnace ：High efficient cooling dimple jackets}
